Product Introduction
Two Color Printing Machine - Professional Flexographic Printing Solution
With over 30 a long time of ability in adaptable bundling fabricating, we provide exactness printing gear outlined for high-volume generation situations. Our machines highlight printing widths extending from 600mm to 1500mm (with 800mm and 1000mm being most popular), working speeds from 30–150m/min, and progressed programmed enrollment frameworks that keep up exactness inside ±0.05mm. Supported by our 8,600㎡ cutting edge office and traded to 40+ nations, our two color printing machine arrangements combine vigorous development, reliable color enrollment, and cost-effective operation for messenger sacks, nourishment bundling, and eco-friendly shopping applications.
Key Features

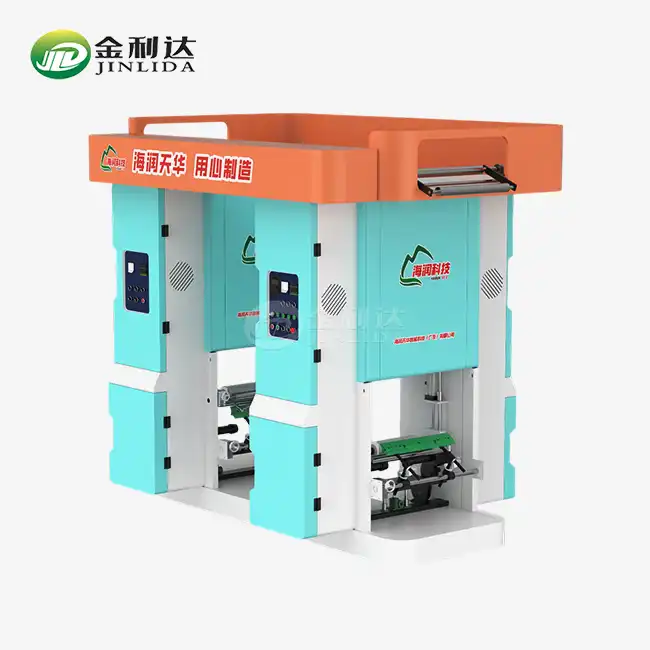

Innovative Low-Temperature Constant Drying Technology
Using a precisely controlled 45℃–55℃ drying environment, the machine is specially designed for water-based inks and heat-sensitive PE/PP films, preventing thermal deformation while maintaining printing accuracy.
Deep Penetration Drying Airflow Design
The advanced extended airflow channel delivers uniform drying performance throughout the ink layer, effectively eliminating problems such as ink sticking, smearing, and incomplete curing.
Intelligent Energy-Efficient Circulation System
The combination of closed insulation structure and vortex hot air circulation improves drying efficiency, reduces heat loss, and achieves over 60% energy savings compared with conventional equipment.
Advanced PLC Intelligent Control
Integrated PLC technology enables automatic monitoring and adjustment of temperature, airflow, and production speed for stable and efficient operation.
Versatile Equipment Configuration
Different transmission systems, including mechanical, synchronous belt, and servo drive options, provide flexible solutions for various printing environments.
Sustainable Printing Technology
Supporting water-based ink processes, the machine helps reduce environmental impact, minimize VOC emissions, and promote cleaner printing production.
What Makes Our Two Color Printing Machine Stand Out
Precision Registration Control
You require steady branding over thousands of sacks. Our machines illuminate the "enlistment float" issue through progressed photoelectric adjustment frameworks. The programmed dual-color enlistment highlight keeps your symbol sharp and proficient from the to begin with meter to the last.
Versatile Material Compatibility
Your generation requests adaptability. Our hardware handles PE, PP, PO, HDPE, LDPE, and multi-layer movies with thickness extending from 0.015–0.12mm (15–120μm). Whether you're printing dispatch packs or nourishment bundling rolls, the framework adjusts to your substrate requirements.
Efficient Production Workflow
Time is cash in fabricating. The coordinates hot-air drying framework (30–100℃) with electric warming guarantees quick ink curing between color stations. Combined with programmed web directing and variable recurrence speed control, you minimize downtime and maximize output.
Technical Specifications
| Parameter | Specification |
|---|---|
| Applicable Materials | PE, PP, PO, HDPE, LDPE films, courier bags, garbage bags, packaging rolls |
| Printing Colors | Dual Color (2 colors) |
| Printing Width | 600mm / 800mm / 1000mm / 1200mm / 1500mm |
| Printing Speed | Standard: 30–80m/min / High-speed: 80–150m/min |
| Printing Thickness | 0.015–0.12mm (15–120μm) |
| Plate Cylinder | Diameter: 120–220mm / Shaft or shaftless mounting / Flexographic plates, resin plates |
| Drying System | Hot air circulation / Temperature: 30–100℃ / Electric heating/steam/thermal oil |
| Unwinding & Rewinding | Unwind diameter: ≤600–800mm / Rewind diameter: ≤600–800mm / Auto tension & guiding |
| Total Power | 600–800mm models: 5–8kW / 1000–1200mm models: 8–12kW |
| Control System | VFD speed control, PLC touchscreen, auto registration, meter counter, stop positioning |
Why Choose Jinlida's Printing Solutions

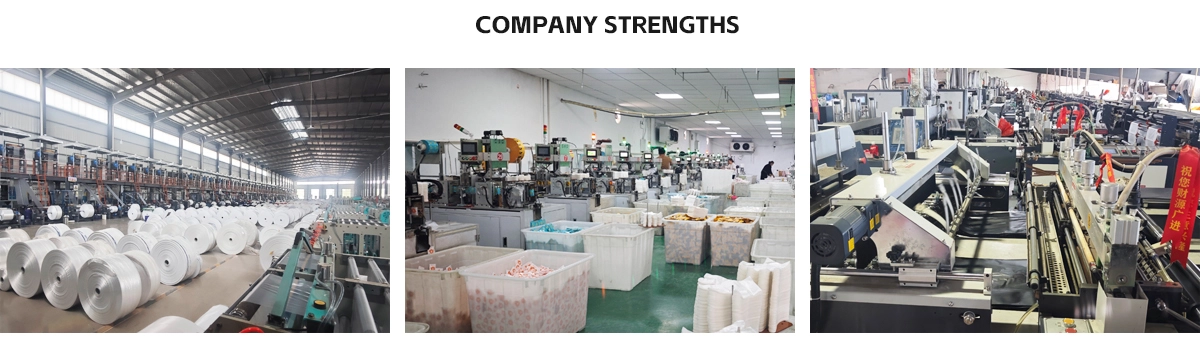

Proven Manufacturing Excellence
Our factory employs over 100 skilled workers, including 40+ technical professionals. This deep bench of expertise ensures your equipment receives proper commissioning support and ongoing technical guidance.
Comprehensive Quality Standards
We implement ISO Quality Management systems throughout production. Every two color printing machine undergoes rigorous testing for registration accuracy, ink density stability, and mechanical concentricity before shipment.
Global Service Network
With products delivered to Europe, North America, Australia, and Asia, we understand international packaging standards. Our 24-hour customer support ensures you're never alone when production questions arise.
Flexible Customization Options
Your packaging requirements are unique. We offer shaftless or shaft-mounted plate cylinder configurations, different heating methods (electric, steam, thermal oil), and width options from 600mm to 1500mm to match your specific production scale.
Real-World Applications for Your Business
Nourishment Bundling Generation: Print clear termination dates and brand logos on nibble packs and solidified nourishment pockets with load-bearing capacities from 8-50kg.
Courier Sack Fabricating: Apply company branding and taking care of informational on poly mailers utilized over coordinations industries.

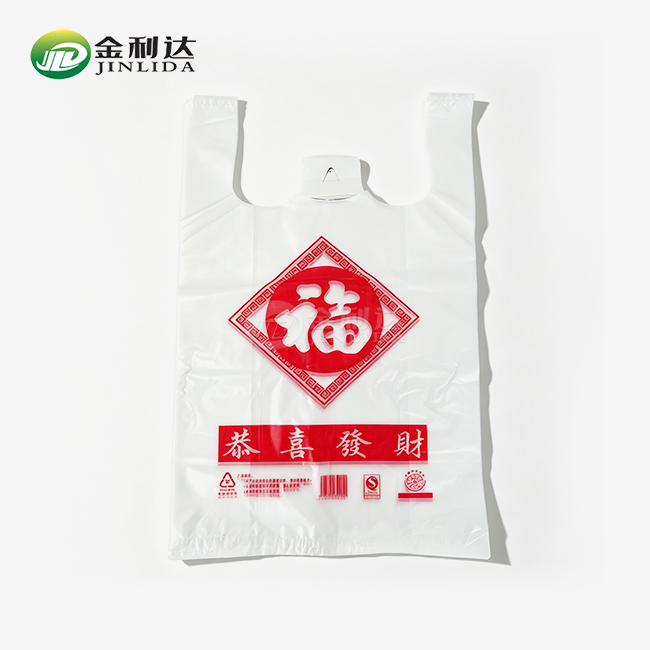

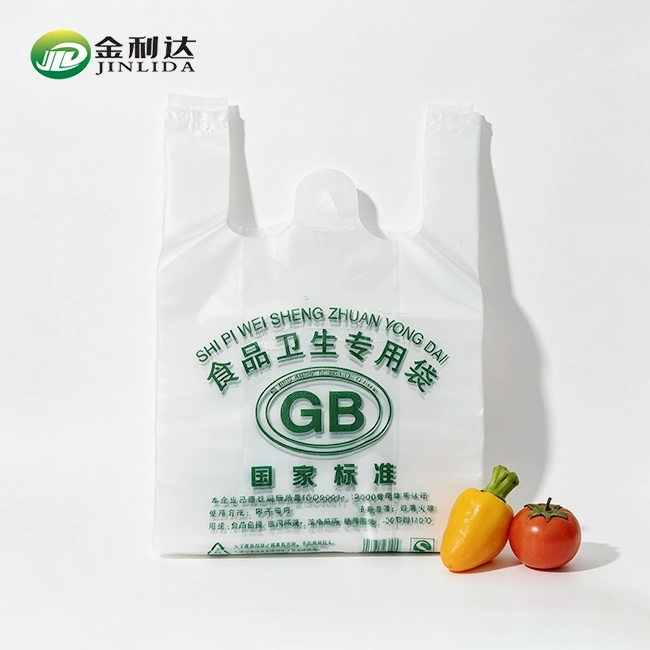

Shopping Sack Generation: Make alluring limited time plans on eco-friendly shopping packs that upgrade retail brand recognition.
Agricultural Bundling: Print item data and security notices on seed sacks and fertilizer bundling with chemical-resistant inks.
Frequently Asked Questions
Q: How do I keep up color consistency over long generation runs?
A: Our machines include programmed ink thickness checking. Every day calibration of ink thickness and customary cleaning of the anilox rollers guarantee uniform color from begin to wrap up. We prescribe checking ink pH levels and keeping up the hot-air framework at steady temperatures.
Q: Can your product handle UV-curable inks?
A: Yes. The hardware can be retrofitted with UV curing lights. You'll require to swap standard rollers for UV-resistant EPDM fabric, which we can organize amid customization.
Q: What's the normal return on speculation for this equipment?
A: Most commercial bundling makers accomplish ROI inside 14-20 months through decreased labor costs and lower fabric squander compared to single-color machines requiring numerous passes.
Q: Why do I see obscuring amid high-speed operation?
A: This catching issue happens when ink thickness isn't appropriately adjusted. Guarantee your to begin with color has marginally higher consistency than the moment, or increment the IR dryer concentrated between printing stations.
Q: How frequently does the machine require maintenance?
A: Perform every day checks on gripper pressure and nourish sensors to avoid substrate slippage. The water-circulating framework needs every day observing for appropriate ink-water adjust. Major upkeep interims are quarterly.
Ready to Upgrade Your Printing Capacity?
Transform your packaging production with proven printing technology backed by decades of manufacturing experience. Contact our technical two color printing machine's team today at 18663311788@139.com for customized solutions.
